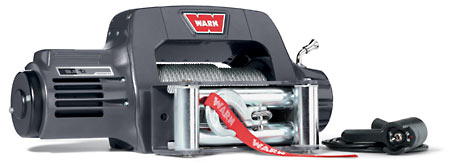

9.5ti SELF-RECOVERY WINCH
The new 9.5ti packs 9500 lbs of pulling capacity into a massive 12.5 lb aluminum die-cast body. The new shape not only looks great, but sheds the elements like no other winch on the market: seals at the key points give extreme-duty water resistance. A Gen II Bosch motor delivers just the right balance between torque and speed. Plus another Warn Industries first - operator feedback - the thermometric indicator gives the operator information about motor temperature during the winching operation.
9.5ti SPECS/PART NUMBERS
Part Number: PN 67550 (12V DC)
Rated Line Pull: 9500 lbs. (4310 kgs.) single-line
Motor: Gen II, Series WoundTM
Remote Control: Remote switch, 12' (3.7m) lead
Geartrain: 3-Stage Planetary
Gear Ratio: 156:1
Lubrication: Aeroshell #17
Clutch (freespooling): Sliding Ring Gear
Brake: Automatic Direct Drive Cone
Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm)
Weight: 89 lbs. (36.3kgs.)
Wire Rope: 125', 5/16" diameter (30m, 8mm diam.)
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery Leads: 2 gauge, 72" (1.83m)
Finish: Chromate with high-gloss powder coat
Nuts/Bolts: PN 39570

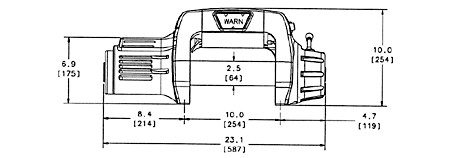

Winch Dimensions: 23.1" L. x 6.3" D. x 10.0" H. (587mm L. x 160mm D. x 254mm H.)
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
