M15000 SELF-RECOVERY WINCH

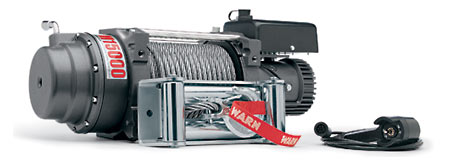

When you work hard enough to need a really big truck, you'll want a winch with the most capacity you can get your hands on. The WARN M15000 - 15,000lb/6804kgs winch is just such a winch. This WARN winch boasts new high strength carrier plates to handle the gear train stresses of a 15,000lb load. The gear ratio is 315:1, with 90 feet of 7/16" wire rope equipped with a large latched hook. The control pack is designed for generous clearance and ease of access.
M15000 SPECS/PART NUMBERS
Part Numbers: PN 47801 (12V DC), PN 478022 (24V DC, CE)
Rated Line Pull: 15000 lbs. (6804 kgs.) single-line
Motor: 12V 4.6 hp, 24V 2.5 hp Series WoundTM
Remote Control: Remote switch, 12' (3.7m) lead
Geartrain: 3-Stage Planetary
Gear Ratio: 315:1
Lubrication: Molylube #1 or Aeroshell #17
Clutch (freespooling): Rotating Ring Gear
Brake: Automatic Direct Drive Cone
Drum Diameter/Length: 3.5"/8.2" (9cm/21cm)
Weight: 136lbs. (62kgs.)
Wire Rope: 90', 7/16" diameter (27m, 11mm diam.)
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery Leads: 2 gauge, 72" (1.83m)
Finish: Argent Gray Powder Coat
Nuts/Bolts: PN 61946
CE Winches: CE products are designed to meet European Standards. CE winches include CE labels, manuals, roller fairlead and safety hook.

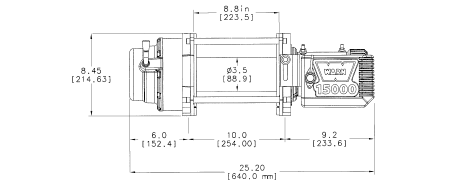

Winch Dimensions: 25.2" L. x 8.5" D. x 11" H. (556mm L. x 215mm D. x 279mm H.)
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
