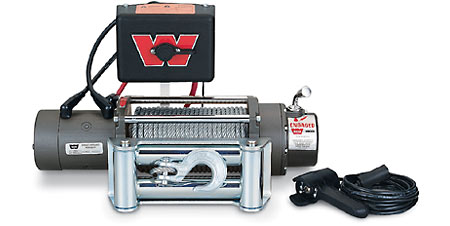

M8000 SELF-RECOVERY WINCH
Compact. Tough. An outstanding value. Available with a roller or hawse fairlead and your choice of 80 or 100' of 5/16" diameter wire rope, the M8000 pulls a fast 8ft. per minute at rated load. The 4.8 hp Series Wound motor delivers big torque and power. Includes an all-weather remote control on a 12' (3.7m) lead.
M8000 SPECS/PART NUMBERS
Part Number: PN 20910 (12V DC) 80' wire rope and hawse fairlead
Part Number: PN 26502 (12V DC) 100' wire rope and roller fairlead
Part Number: PN 265022 (12V DC, CE) 100' wire rope, roller fairlead, safety hook and thimble
Part Number: PN 265032 (24V DC, CE) 100' wire rope, roller fairlead, safety hook and thimble
Rated Line Pull: 8000 lbs. (3630 kgs.) single-line
Motor: 12V 4.8 hp, 24V 2.1 hp, Series WoundTM
Remote Control: Remote switch, 12' (3.7m) lead
Geartrain: 3-Stage Planetary
Gear Ratio: 216:1
Lubrication: Aeroshell #17
Clutch (free spooling): Sliding Ring Gear
Brake: Automatic Direct Drive Cone
Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm)
Weight: 74 lbs. (34 kgs.)
Wire Rope: 80', 5/16" diam. (24m, 8mm diam.) or 100', 5/16" diam. (30m, 8mm diam.)
Fairlead for PN 20910: Hawse
Fairlead for PN 26502, 265022, 265032: Roller
Recommended Battery: 650 CCA minimum for winching
Battery Leads: 2 gauge, 72" (1.83m)
Finish: Argent Gray Powder Coat
Nuts/Bolts: PN 39625

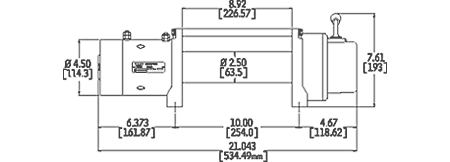

Winch Dimensions: 21.04" L. x 6.3" D. x 7.6" H. (534mm L. x 160m D. x 193mm H.)
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
