(534mm L. x 160mm D. x 252mm H.)
|
|
|
|
|
|

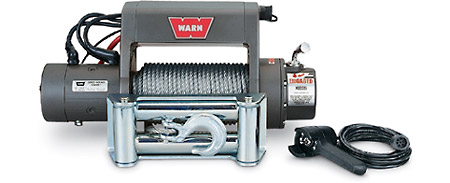

| X8000i SELF-RECOVERY WINCH | |
| This winch is the little brother of the XD9000i, with many of the same features. Its 4.8 horse power Series WoundTM motor and our proven three-stage planetary gearing helps it deliver a no-load line retrieval speed of 42 feet per minute. The full-load pull rate is over 8 ft. per minute. Plus, its integrated control pack and direct drive, cone braking system are reliable and quiet. | |
| X8000i SPECS/PART NUMBERS | |
| Part Numbers: PN 28401 (12V DC), PN 284012 (12V DC, CE) | |
| Rated Line Pull: 8000 lbs. (3630 kgs.) single-line | |
| Motor: 4.8 hp, Series WoundTM | |
| Remote Control: Remote switch, 12' (3.7m) lead | |
| Geartrain: 3-Stage Planetary | |
| Gear Ratio: 216:1 | |
| Lubrication: Aeroshell #17 | |
| Clutch (freespooling): Sliding Ring Gear | |
| Brake: Automatic Direct Drive Cone | |
| Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm) | |
| Weight: 74 lbs. (34 kgs.) | |
| Wire Rope: 100', 5/16" diameter (30m, 8mm diam.) | |
| Fairlead: Roller | |
| Recommended Battery: 650 CCA minimum for winching | |
| Battery Leads: 2 gauge, 72" (1.83m) | |
| Finish: Argent Gray Powder Coat | |
| Nuts/Bolts: PN 29570 | |
| CE Winches: CE products are designed to meet European Standards. CE winches include CE labels, Manuals, Safety Hook and Thimble. | |
|
|
|

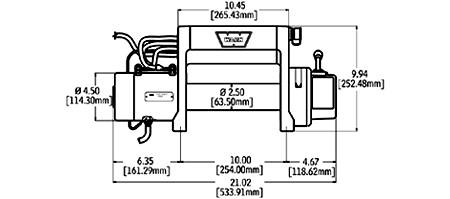

| Winch Dimensions: 21.02" L. x 6.3" D. x 9.94" H. (534mm L. x 160mm D. x 252mm H.) |
|
| Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm) | |
