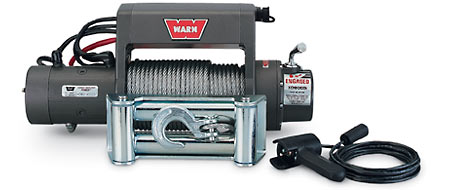

XD9000i SELF-RECOVERY WINCH
You'll probably see more XD9000i winches on trail rigs than any other winch. No load line speed of 38-feet per minute and three-stage planetary gearing and the ability to run cool with low amp draw for long winching cycles are just a few reasons why.
XD9000i SPECS/PART NUMBERS
Part Number: PN 27550 (12V DC), PN 275502 (12V DC, CE), PN 274022 (24V DC, CE)
Rated Line Pull: 9000 lbs. (4080 kgs.) single-line
Motor: 12V 4.6 hp, 24V 2.5 hp, Series WoundTM
Remote Control: Remote switch, 12' (3.7m) lead
Geartrain: 3-Stage Planetary
Gear Ratio: 156:1
Lubrication: Aeroshell #17
Clutch (freespooling): Sliding Ring Gear
Brake: Automatic Direct Drive Cone
Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm)
Weight: 85 lbs. (38.5 kgs.)
Wire Rope: 125', 5/16" diameter (38m, 8mm diameter)
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery Leads: 2 gauge, 72" (1.83m)
Finish: Argent Powder Coat
Nuts/Bolts: PN 39570
CE Winches: CE products are designed to meet European Standards. CE winches include CE labels, Manuals, Safety Hook and Thimble.

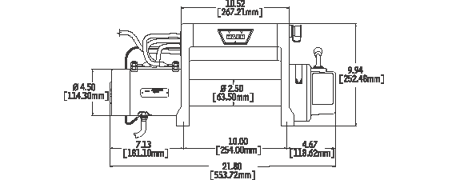

Winch Dimensions: 21.8" L. x 6.3" D. x 9.94" H. (553mm L. x 160mm D. x 252mm H.)
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
